Generally a shell-less structure; the impeller shaft can be used vertically or horizontally; the impeller and shaft are made of high-temperature resistant materials; the design fully considers high-temperature operating conditions; and it employs water-cooling or air-cooling structures.
Structural Type:
Centrifugal, direct-drive or belt-driven.
Conveying Medium:
Purified flue gas.

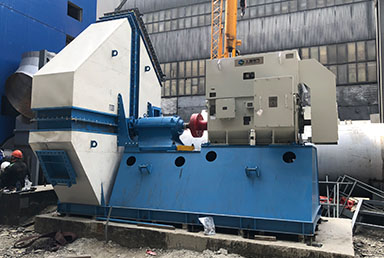

Field Case
Typical Performance Parameters:
Airflow: 15000~180000 m³/h;
Air Pressure (20℃): 2000~4000 Pa;
Operating Temperature: 300~970℃
