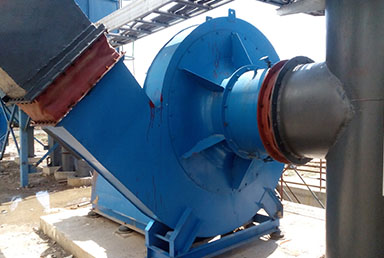

Electrolytic Aluminum Process Fan
Electrolytic aluminum process fans are key power equipment in the entire electrolytic aluminum production process, covering four core steps: electrolytic cell flue gas purification, alumina conveying, anode roasting, and cooling. Their application characteristics include: strong corrosiveness, high dust levels, flammability and explosiveness, and precise airflow control.

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY
Share with:
Description
Backward Curved blades, high efficiency and energy saving, not prone to dust accumulation, wear-resistant, and with a rationally divided casing for easy maintenance.
Structural Type:
Cantilevered or double-supported centrifugal type
Conveying Medium:
Purified flue gas
Our Advantages


Typical Performance Parameters:
Airflow: 590,000~700,000 m³/h
Air Pressure: 5,800~6,800 Pa
Operating Temperature: 80~120℃
