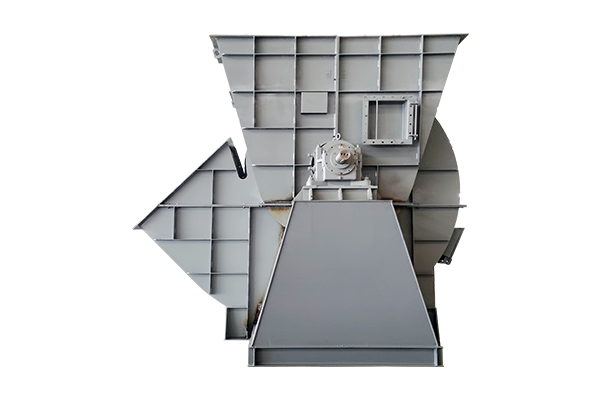

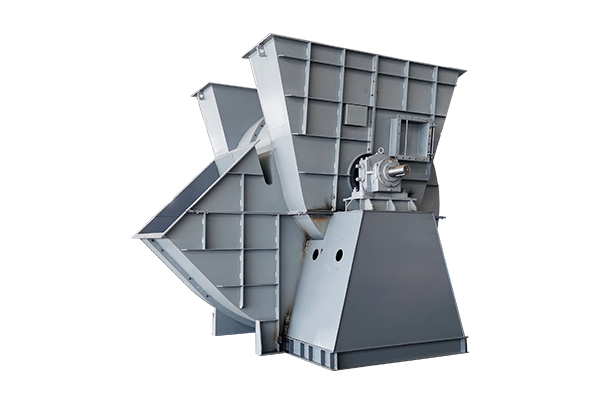

Kiln fan

This series of fans meet the needs of roasting, drying, moisture removal and waste heat utilization of various tunnel kilns, rotary kilns, glass kilns, enamel kilns, lime kilns, roller kilns and other kilns. These include the forced air supply and exhaust applications in various production and processing links such as combustion-supporting fans, smoke exhaust fans, circulation fans, ignition cooling fans, and heat circulation fans. Combining rich practical experience and customized fan design, our company has developed several series of high-efficiency combustion-supporting fans with a pressure up to 30kPa, as well as special-structure circulation fans and waste heat fans that can be applied to different furnace types.

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY

Share with:

PRODUCTS LIST

High Pressure Centrifugal Fan

Medium Pressure Centrifugal Fan

High Flow Centrifugal Fan

Heavy Duty Centrifugal Fan

Centrifugal Fan

Custom-Tailor

Variable Stator Blade Axial Flow Fan

Mining Fans

Industrial Furnace

Building Materials Industry

Thermal Power Industry

Metallurgy Industry

Chemical Industry

Environmental Protection Industry

Paper Making Plant

+86-373-5828638

sales@simoblower.com

simoblower

№343 Simo Road, Fengquan District, XinXiang City, HeNan Province, CHINA

Description

APPLICATION

Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.

STRUCTURE

Drive, we usually divide the fan into:

In the process of choosing the fan, please select the appropriate fan according to the working conditions.

Specification

model	Air Capacity(m³/h)	Total Pressure(Pa)	High Efficiency(10%)	Rotation Speed(r/min)
【4-10】	No8D~29.5D	15900~812000	1190~8050	87.1	730~1450
【4-10】	No20F~31.5F	121000~1550000	2140~9100	85.5	730~960
【5-10】	No8D~29.5D	13740~647000	1540~10500	87	730~1450
【5-10】	No20F~35.5F	108000~1460000	2450~12500	83.1	730~960
【5-12】	No8D~30D	10000~533445	1000~15000	85	730~1450
【5-12】	No20F~35F	100000~1024655	1000~15000	83	730~960
【6-18】	No8D~30D	8730~621000	780~10790	86	730~1450
【6-18】	No20F~35.5F	103720~1480000	2805~13600	83.2	730~960
【7-05】	No8D~28D	6550~401000	1120~12500	86.5	730~1450
【7-05】	No20F~33.5F	77820~1050000	4030~13400	83	730~960

Features

Full-process professional services, tailor-made fans according to the working conditions, more suitable for the system pipe network, to ensure a better match between the fan economy and performance;

Through the finite element analysis software, the aerodynamic performance of the model is analyzed and optimized, and the efficiency is ≥85%;

The welded impeller will be selected according to the size and weight, and the appropriate balancing machine will be selected for dynamic balance verification. Balance accuracy≤2.5mm/s;

The aerodynamically optimized low-noise design makes the airflow more stable and orderly, effectively reducing noise;

Thickened fuselage, full of materials, motors and bearings are of big brands, the surface of the fan is sprayed, with strong corrosion resistance and long service life;

The product structure is optimized and upgraded, which is easy to install and maintain, and sensors for temperature measurement, speed measurement, and vibration measurement can be added to monitor the running status of the fan in real time;
