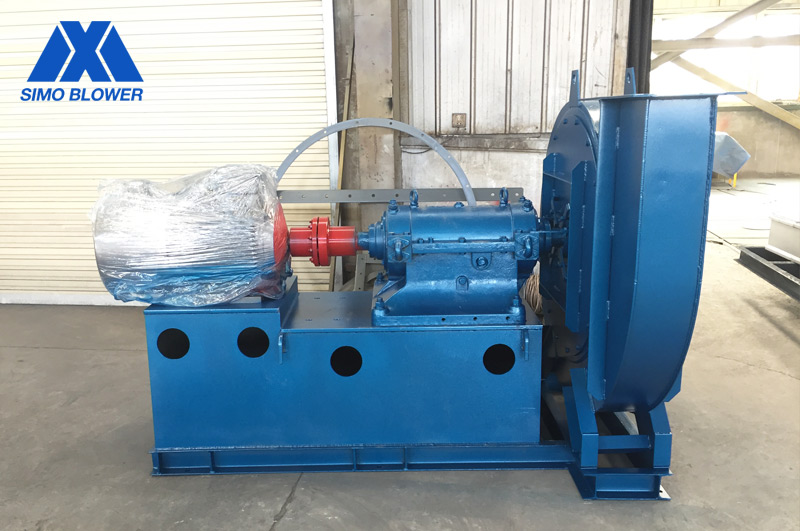

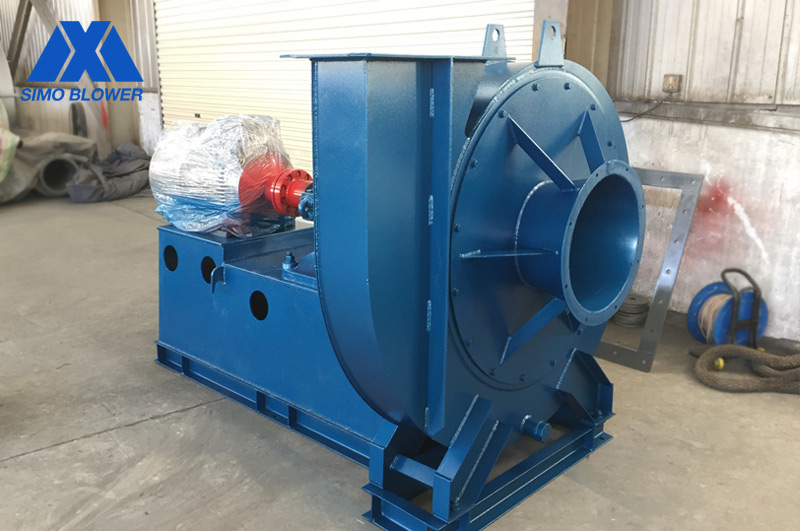

Cooler fans

In the process of high-temperature flue gas cooling, the centrifugal fan mainly plays the role of cooling and conveying flue gas, while conveying flue gas to a predetermined position. Whether in various kiln systems or cement plant clinker burning systems, our company can provide different models of fans according to your different usage environments, and customize and design fans for your system.

Common models of cooling fans include Y5-47, Y5-48, Y8-39, Y9-38, Y4-68, Y4-73, etc;

Performance parameters: Air volume from 5000-3000m ³/ h. Wind pressure: 1000-9000Pa, power: 11kw-630kw.

PECULIARITY

DESIGN FEATURES:

High Temperature Construction
Abrasion Resistant Construction
Mechanical Draft Fans

AVAILABLE MATERIALS OF CONSTRUCTION:

Mild Steel
Abrasion Resistant Alloys
Stainless Steel Alloys

APPLICATIONS :

The air

COMMONLY USED FANS:

Backward Curved Centrifugal
Backward Curved High Efficiency

application

Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.

Specification

Product	Flow range		Pressure range		Speed ofmain shaft	Impeller diameter
Product	m3/h	cfm	pa	mmwc	rpm	mm	in"
4-14A	2749-431290	1617-253700	1476-7300	150-745	≤4000	400-2200	15-87
6-11F	52395-575176	30820-338340	2304-14068	234-1435	≤1450	1500-3600	59-142
6-12F	15189-703455	8934-413798	2171-12259	221-1251	≤1450	1800-3300	70-130
5-12C	590.4-700735	347-412198	684-8687	69-886	≤4000	400-3300	15-130
4-10D	10696-952530	6291-560312	615-8302	62-847	≤4000	400-3000	15-120
6-2*11F	1800-3300	1058-1942	2025-14068	206-1434	≤1450	1500-3600	15-119
6-05D	884-321950	520-189383	2304-14068	234-1435	≤4000	1500-3600	59-142

Features

When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

The motor selects the high-efficiency energy-saving motor of China's leading motor manufacturing enterprise (can also install the brand motor required by users), the quality is reliable, and the energy consumption is lower.

The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.

The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.

After the production is completed, all products are tested for running and vibration values for reliable operation.

Installation is simple and does not require the support of professional technicians.
