4-10 series centrifugal ventilation fan

The 4-10 series centrifugal Fan can be used for indoor ventilation in general factories and large buildings.
It can be used as both an input gas and an output gas. The type of gas transported is air and other non-self-igniting, non-self-explosive, non-surrounding, harmless to the human body and is non-corrosive to steel materials.

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY

Share with:

PRODUCTS LIST

High Pressure Centrifugal Fan

Medium Pressure Centrifugal Fan

High Flow Centrifugal Fan

Heavy Duty Centrifugal Fan

Centrifugal Fan

Custom-Tailor

Variable Stator Blade Axial Flow Fan

Mining Fans

Industrial Furnace

Building Materials Industry

Thermal Power Industry

Metallurgy Industry

Chemical Industry

Environmental Protection Industry

Paper Making Plant

+86-373-5828638

sales@simoblower.com

simoblower

№343 Simo Road, Fengquan District, XinXiang City, HeNan Province, CHINA

Description

G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.

Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.

application

Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.

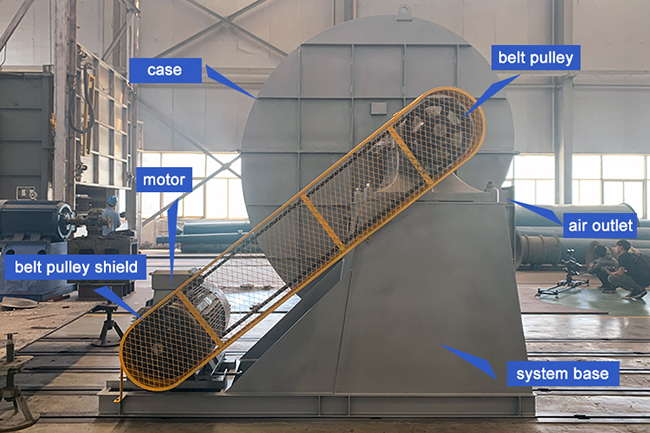

Structure

Drive, we usually divide the fan into:

In the process of choosing the fan, please select the appropriate fan according to the working conditions.

Specification

Series no.	4-10 series	Feature selection
Series no.	4-10 series	Normal	anti-corrosion	wear-resisting	High temperature	anti-explosion	Remarks
Performance	Impeller diameter	400-3000mm
	Rotation speed	≤4000rpm
	Pressure range	615-8302Pa
	Flow range	10696-952530㎥/h
Structure	Blade type	Backward
	Impeller support	DWDI(Double Width, Double Inlet)
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station					Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling					Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven					Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250℃	Customer request
Gas composition	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas	Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc					Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel	FRP, Aluminum alloy	Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel					Can be specified
	Bearing	ZWZ, SKF, FAG, NSK					Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Features

When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.

The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

The impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

After the production is completed, all products are tested for running and vibration values for reliable operation.

Installation is simple and does not require the support of professional technicians.
