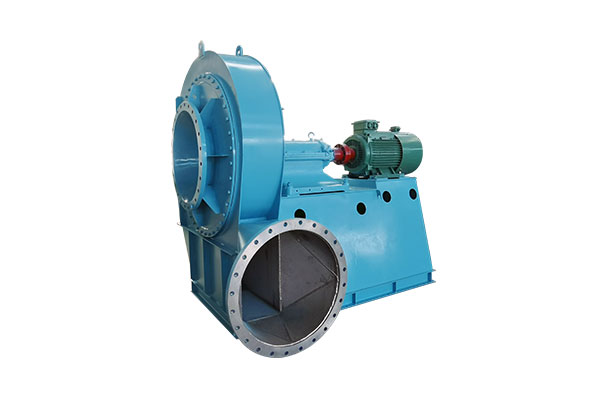

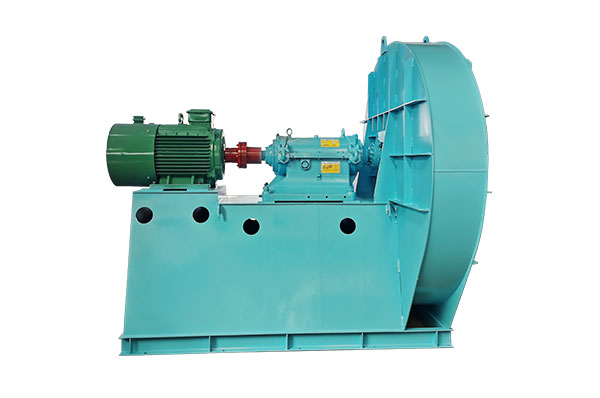

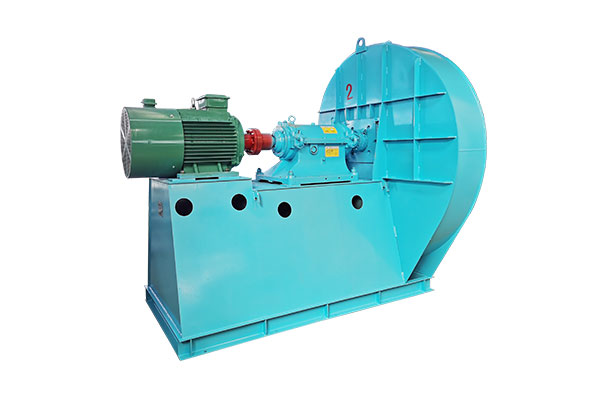

Seal Air fan
In the chemical industry, gas, garbage collection stations and other special gas industries with certain corrosiveness, explosiveness, and flammability, the sealing requirements for fans are relatively high, especially at the shaft seal, which is prone to leakage due to the rotation of the main shaft. The sealed fan is mainly to solve the leakage problem existing in the existing fan.

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY
Share with:
Description
In the chemical industry, gas, garbage collection stations and other special gas industries with certain corrosiveness, explosiveness, and flammability, the sealing requirements for fans are relatively high, especially at the shaft seal, which is prone to leakage due to the rotation of the main shaft. The sealed fan is mainly to solve the leakage problem existing in the existing fan.
Sealing method
1. According to the characteristics and composition of the conveying gas, adopt the corresponding seal form: theoretical design seal form:
STRUCTURE
Drive, we usually divide the fan into:


In the process of choosing the fan, please select the appropriate fan according to the working conditions.
APPLICATION
01.
Fan parameters: select and design according to the provided parameters
02.
This series of products: common models can be designed as required for zero leakage structure
03.
Application environment: furnace, chemical industry, resource utilization and other industries, transport harmful gas, organic gas, inorganic gas, explosion-proof gas, etc.

Features

01

310S/304 material/316L material.

02

The impeller is resistant to high temperature.

03

The impeller is based on stainless steel 310s.

04

The fan impeller is connected to the transmission part, and the temperature is cooled by water to prevent the motor from burning out.

05

The fan is insulated, the outer layer of the casing passes through the 2-layer casing, and insulation cotton is added in the middle to prevent heat loss.

06

Composed of impeller blades, curved front disc and flat rear disc. The material is made of 310s stainless steel with high strength and good durability, and the blades use stainless steel to resist high temperature. And after strict dynamic and static balance correction. The air performance is good, the efficiency is high, and the operation is smooth
company
  • 1. Design science

Simo blower adopts advanced finite element analysis software to test the key components of the fan to ensure the reliability of the strength of the impeller, and the service life of the impeller is expected to be 20 years;
Simo blower adopts advanced aerodynamic model for fluid simulation, which greatly improves the design efficiency and accuracy of the fan, and lays the foundation for the reliability of fan operation;
  • 2.Advanced technology

Simo blower has more than 300 sets of various processing and testing equipment, such as CNC laser cutting machine, CNC spinning machine, welding robot, CNC bending machine, CNC gantry milling machine, CNC lathe, 40T dynamic balancing machine and other intelligent equipment, which greatly improves the processing of products quality.
  • 3.Stable operation

The key operating parts of Simo blower's  are selected from well-known brands at home and abroad. For example, the bearings are Havalo, FAG, SKF, NSK and other well-known domestic and foreign brands, and the motors are from Sima Motors, Shangdian, Landian, Xiangtan, Jiamusi, ABB, Siemens and other well-known brands at home and abroad have carefully selected key components to effectively improve the operation reliability of fan products.
  • 4.Efficient performance

Simo blower's strict quality management system, dynamic balance experiments, vibration experiments, rotor performance experiments, characteristic experiments, etc., accurately control every link to ensure the quality of equipment production and ensure zero error in the factory.
