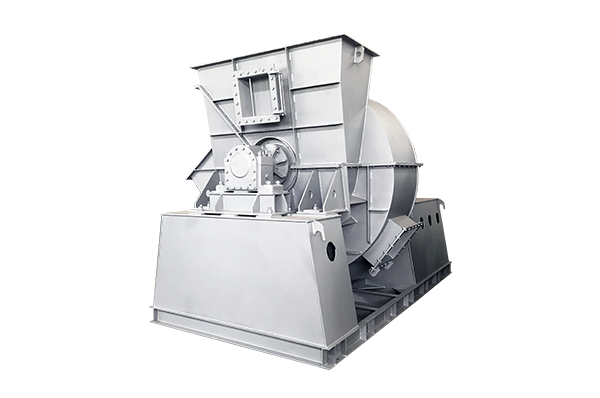

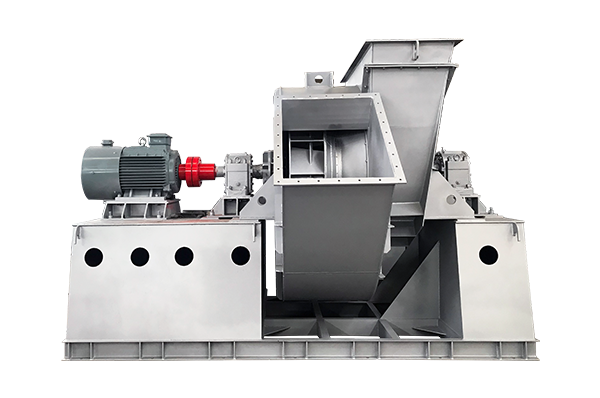

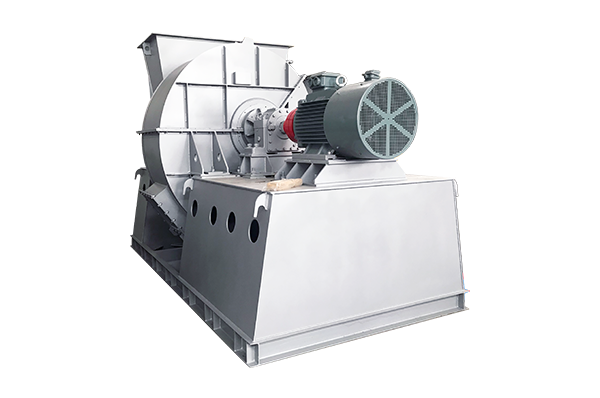

High temperature fan

This series of high-temperature fans is suitable for transporting weakly corrosive high-temperature gases at 500°C. Performance parameters: flow rate 1000-1400000m3/h, total pressure 500-20000Pa. Commonly used in the discharge system of various heating furnaces. The main series include W4-57 series, W4-14 series, W4-09series, W4-10 series, W5-11 series, W5-10 series, W6-04series, W7-11 series, W9- 10 series, W9-08 series and other high-temperature fans can also be designed according to the performance parameters provided by users.

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY

Share with:

PRODUCTS LIST

High Pressure Centrifugal Fan

Medium Pressure Centrifugal Fan

High Flow Centrifugal Fan

Heavy Duty Centrifugal Fan

Centrifugal Fan

Custom-Tailor

Variable Stator Blade Axial Flow Fan

Mining Fans

Industrial Furnace

Building Materials Industry

Thermal Power Industry

Metallurgy Industry

Chemical Industry

Environmental Protection Industry

Paper Making Plant

+86-373-5828638

sales@simoblower.com

simoblower

№343 Simo Road, Fengquan District, XinXiang City, HeNan Province, CHINA

Description

W series high-temperature fans are suitable for transporting weakly corrosive high-temperature gases at 250°C~750°C. It is mostly used for flue gas exhaust of heating furnace, high temperature dust gas exhaust of cement production line and other high temperature gas conveying systems. It mainly includes W4-73, W5-55, W6-29, W6-31, W6-39, W7-16, W7-28 and other series of high temperature fans. This series of fans has the characteristics of strong anti-deformation ability, stable operation, easy installation and maintenance, etc. Fan aerodynamic parameters, layout structure, direction of rotation and angle can be designed and manufactured according to user requirements.

measures

The high-temperature fan adopts advanced research and development software for finite element analysis and flow channel optimization design

In terms of material selection, fully consider the creep strength, durable strength and durable plasticity of the material;

In terms of thermal expansion design, fully consider the thermal expansion of the casing, the thermal expansion of the shaft seal, the gap between the air inlet and the impeller, the tolerance of the impeller and the main shaft, and the linear expansion of the main shaft;

In terms of heat dissipation, fully consider the heat dissipation of the bearing and the heat dissipation of the shaft seal;

For the shutdown of large F-type high-temperature fans, consider the slow-rotation device design.

STRUCTURE

Drive, we usually divide the fan into:

In the process of choosing the fan, please select the appropriate fan according to the working conditions.

APPLICATION

Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.

number	series	medium	temperature （℃）	Air Capacity(m³/h)	Total Pressure(Pa)	Rotation Speed(r/min)
1	W4-10No 18D	High temperature flue gas	600~700	133000	866	730
2	W(N2)5-10No 15D	High temperature nitrogen	350	94000	3430	1450
3	W5-10No 20D	High temperature flue gas	650	136000	1100	730
4	W6-11No 17F	Containing dust and smoke	430	45500	4282	1450
5	W6-2X04No 19F	Containing dust and smoke	400	140000	6000	1450
6	W6-12No 22F	SO2 smoke	320	165000	3800	960
7	W7-07No 11D	Dust containing 50g/m³ flue gas	500	6200	2645	1450
8	W7-10No 19.5F	SO2 smoke	330	80000	5000	960

Features

310S/304 material/316L material.

The impeller is resistant to high temperature.

The impeller is based on stainless steel 310s.

The fan impeller is connected to the transmission part, and the temperature is cooled by water to prevent the motor from burning out.

The fan is insulated, the outer layer of the casing passes through the 2-layer casing, and insulation cotton is added in the middle to prevent heat loss.

Composed of impeller blades, curved front disc and flat rear disc. The material is made of 310s stainless steel with high strength and good durability, and the blades use stainless steel to resist high temperature. And after strict dynamic and static balance correction. The air performance is good, the efficiency is high, and the operation is smooth

company

1. Design science

Simo blower adopts advanced finite element analysis software to test the key components of the fan to ensure the reliability of the strength of the impeller, and the service life of the impeller is expected to be 20 years;

Simo blower adopts advanced aerodynamic model for fluid simulation, which greatly improves the design efficiency and accuracy of the fan, and lays the foundation for the reliability of fan operation;

2.Advanced technology

Simo blower has more than 300 sets of various processing and testing equipment, such as CNC laser cutting machine, CNC spinning machine, welding robot, CNC bending machine, CNC gantry milling machine, CNC lathe, 40T dynamic balancing machine and other intelligent equipment, which greatly improves the processing of products quality.

3.Stable operation

The key operating parts of Simo blower's are selected from well-known brands at home and abroad. For example, the bearings are Havalo, FAG, SKF, NSK and other well-known domestic and foreign brands, and the motors are from Sima Motors, Shangdian, Landian, Xiangtan, Jiamusi, ABB, Siemens and other well-known brands at home and abroad have carefully selected key components to effectively improve the operation reliability of fan products.

4.Efficient performance

Simo blower's strict quality management system, dynamic balance experiments, vibration experiments, rotor performance experiments, characteristic experiments, etc., accurately control every link to ensure the quality of equipment production and ensure zero error in the factory.
