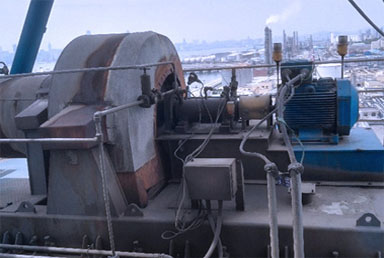

Regeneration Fan
Regeneration fans are core auxiliary machines in industrial flue gas treatment systems (such as desulfurization, denitrification, and activated carbon adsorption regeneration systems). Their main function is to transport high-temperature, dusty, or corrosive gases, returning the desulfurizing agent, catalyst, or adsorbent from the desulfurization tower/denitrification reactor to the system for recycling. They also serve a dual purpose of pressurization and material circulation.

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY
Share with:
Description
High-efficiency backward-curved blades, corrosion-resistant, high-temperature resistant, zero-leakage, air-cooled structure, meeting the process requirements of nitrogen start-up and coking conditions.

Structural Type:
 Cantilever centrifugal type
Typical Performance Parameters:
 Flow rate: 68000 m³/h, Pressure rise: 9800 Pa

Operating temperature:

524℃ (rated operating condition)

477℃ (coking condition)

1℃ (nitrogen start-up)

Related Products


Chemical Industry Introduction
Conveying medium:
 Regenerated flue gas
