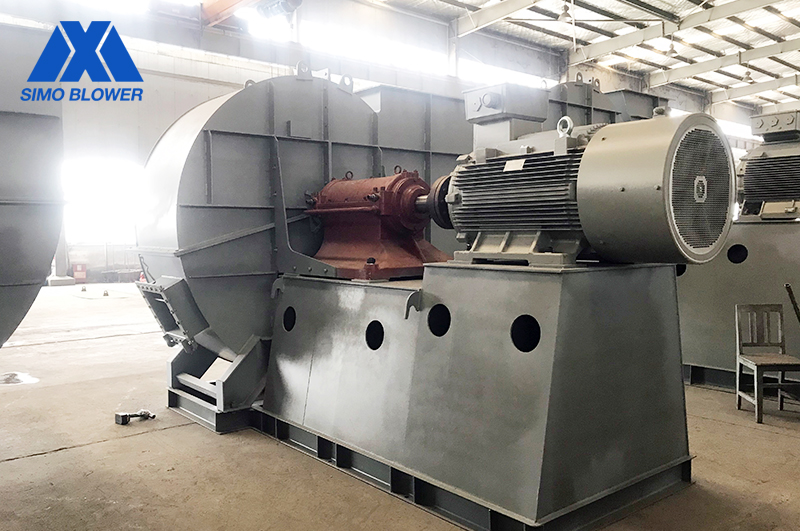

Industrial centrifugal fan
  • Flow: 10696-952530m³/h;
  • Pressure: 615-8302pa;
  • Temperature: 20-600°C

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY
Share with:
Description
    • Industrial centrifugal fan series are used in the industrial field, typical applications include: conveying gas, blasting and induced draft of industrial boiler system, air supply and induced draft of kiln system/incinerator system, air purification equipment, industrial dust collector system etc. In addition to the industrial field, it is also often used in the agricultural and civil fields, and is the most widely used fan series.
PECULIARITYPERFORMANCE RANGE
DESIGN
FEATURES
 1.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.

4. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

6.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

7. Running test and vibration value detection after the production is completed, the fan operation is reliable.

CONFIGURATION OPTIONS
Performance G Universal industrial design, material - carbon steel
W General industrial heat-resistant design (transmission medium allows temperature up to +200°C), material - carbon steel
F Corrosion-resistant design, material - stainless steel
T Ex version made of dissimilar metals, materials - carbon steel, brass (permissible temperature - up to +200 °C)
Material  case Q235, Q345, stainless steel
 shaft 45# steel, Q304, SS304,SS316L
 impeller Q304, 12Cr1Mov,15Crmov, 15MnV
Medium 10---200℃ Dustiness<80 g/m3
Motor Siemens, ABB, WN, SIMO, LA IP 54,55,56
Optional System base frame
components  Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator,
Shock isolator, Diaphragm coupling, Fluid coupling,
Motor rain cover, Temperature sensor, Vibrating sensor,
Soft starter, Inverter, Special Electrical Motor,
System monitoring Instrument,
Lube system, Overhead lube tank.

APPLICATION
  Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
